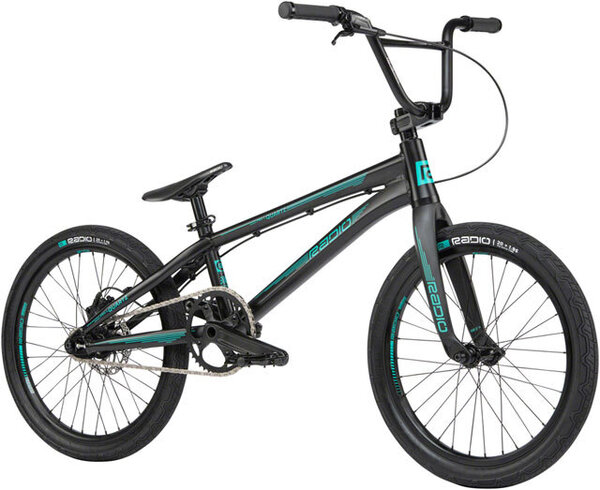

Radio Quartz Pro L
$1,300.00
$1,780.00
Details
The best of the best! The Quartz is our 2X world championship-winning, super-lightweight alloy frame with no details spared. We took this frame and draped it in only the very best components, creating a full pro build that anyone would be stoked to own. You'll find our Solar carbon fork, Oxygen tires, Argon rims, Turbine hubs, and even our new hydraulic disc brake kit on this masterpiece of a bike. Ready for the track and the podium, we hope you can keep up with the speed that this machine can put out!
Specs
Frame | Lightweight, hydroformed 6061 T6 alloy, tapered headtube, forged dropouts, with int. chain tensioners |
---|---|
Fork | Radio, Solar, carbon fork, 1-1/8" – 1.5" tapered steerer tube, 32mm offset |
Rims | Radio, Argon Pro, 36H, alloy, sleeved, tubeless-ready F&R |
Hubs |
Front: Radio, Turbine, alloy CNC, fully sealed, 36T, 3/8" female cr-mo axle Rear: Radio, Turbine, alloy CNC, fully sealed, 36T, disc brake cassette, 3/8" female cr-mo axle |
Tires | Radio, Oxygen, front 20x1.95" / rear 20x1.75", foldable, tubeless ready |
Bottom Bracket | Radio, Raceline, BSA24, external bearing cups, CNC machined, sealed |
Crankset | Radio, Xenon Pro, 2pc crank, cold-forged/CNC alloy,175mm length, 24mm spindle |
Chainrings | Radio, Xenon Pro, 43T, alloy |
Cassette/Freewheel | Radio, 16Tcog, 1/2"- 3/32", sealed cassette driver |
Chain | KMC, Z1eHX, 1/2" x 3/32" |
Brakes | Radio, Raceline, hydraulic disc brake, 120mm rotor |
Brake Levers | Radio, Raceline, hydraulic disc brake 2 finger lever |
Handlebars | Radio, Neon Pro, hydroformed multiple butted & heat-treated cr-mo |
Tape/Grips | Radio, Xenon, diamond knurling, clamp on grip, 139mm length |
Stem | Radio, Neon Pro, top loader, ext. 54mm, CNC machined, alloy |
Headset | Radio, Pro, Int. Headset, sealed, threadless, 1-1/8" – 1.5" |
Seatpost | Radio, 27.2mm, Pivotal, alloy seatpost |
Saddle | Radio, Xenon, Pivotal, no padding |
Pedals | Radio, Xenon Slim, alloy |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / 20.9-inch | 04055822509701 | 2006120121 | 210000000233 |
