Details
Go Wild.

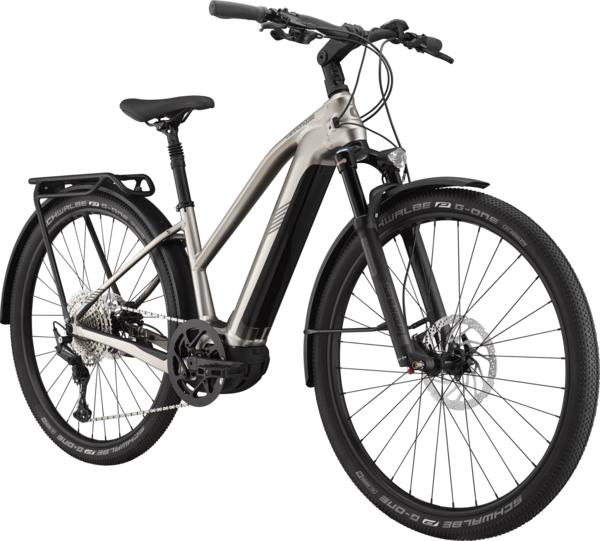

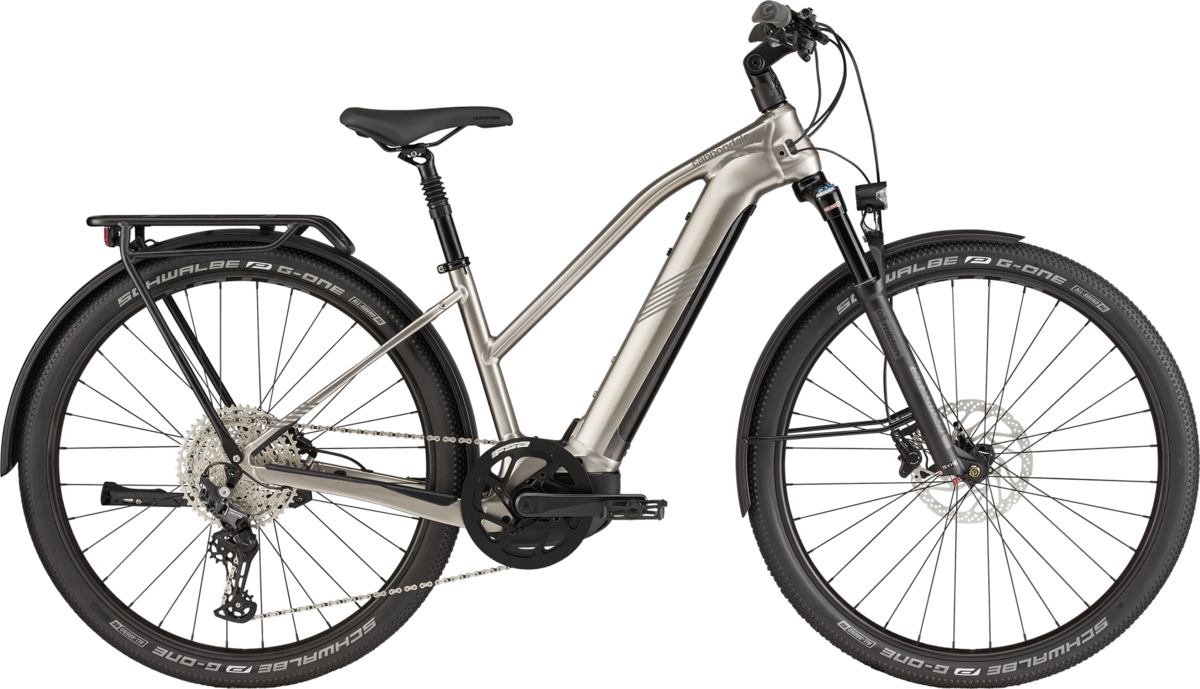

This on-road/off-road e-bike is a fully loaded trekking machine. Get out of the rat-race and into the wilderness.
Where it thrives
Gravel roads, the open road
What it's built for
Endurance, speed, comfort
Highlights
- Premium SmartForm C1 Alloy low-step frame / Suntour Raidon 34 100mm travel fork
- Shimano Deore 12- speed drivetrain / Shimano MT200 hydro disc brakes
- Bosch Performance Line CX 250W drive unit / 625Wh battery / Purion display / Range: up to 105mi (170km)
Powered By Bosch
The Performance Line Speed and long-lasting 625WH PowerTube battery make up Bosch's most powerful e-bike system. Support up to 28 MPH and increased torque of 85Nm for effortless speed and endless fun
Connected
An integrated wheel sensor delivers hyper accurate speed, route, and distance info, registers your bike, reminds you of needed service and more, all through the free Cannondale APP
SmarForm
C1 Alloy Our premium alloy construction. C1 uses every technique in our arsenal to create frames that are incredibly light, stiff and durable, with a ride-feel that could only come from Cannondale
Graphic Reflectivity
Be seen. Highly reflective accents on the frame and fork increase visibility in low-light conditions
Si Motor Mount
Proprietary Cannondale motor mount positrons the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling
The Ai Advantage
Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake
Specs
Frame | Remixte Step-Thru, SmartForm C1 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, rack/fendor mount, lock mount |
---|---|
Fork | SR Suntour Raidon 34 Boost, 100mm, 15x110mm thru-axle, 46mm offset |
Rims | WTB STX i30 TCS, 32h, tubeless ready |
Hubs |
Front: Shimano MT400, 15x110mm thru-axle Rear: Shimano MT510 12x148mm thru-axle |
Spokes | Stainless Steel, 14g |
Tires | Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready |
Crankset | FSA Bosch E-Bike w/custom Ai offset, 46T |
Shifters | Shimano Deore M6100, 12-speed |
Rear Derailleur | Shimano Deore M6100 |
Cassette/Freewheel | Shimano Deore M6100, 10-51, 12-speed |
Chain | KMC X12, 12-speed |
Brakes | Shimano MT200 hydraulic disc, 180/180mm RT30 rotors |
Brake Levers | Shimano MT200 hydraulic disc |
Handlebars | Cannondale 3, 6061 double-butted, 20mm rise, 9° back, 720mm |
Tape/Grips | Cannondale Ergo Fitness Dual Density, Lock-On |
Stem | Cannondale Adjustable, A-headset, 31.8mm |
Headset | Integrated Sealed Bearing, Tapered |
Seatpost | Suspension Seatpost, 31.6 |
Saddle | Cannondale Ergo Touring |
Pedals | Sold separately |
Accessories & Extras |
Herrmans H-Black MR4 front light, H-Trace Micro rear light Tubus Wingee fenders Tubus rear rack (25kg max capacity) |
Motor | Bosch Performance Line Speed 250W (28mph) |
Battery | Bosch PowerTube 625Wh |
Controller/Display | Bosch Kiox |
Charger | Bosch 4A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Meteor Gray / Large | 884603844557 | C66221U10LG | 210000012143 |
