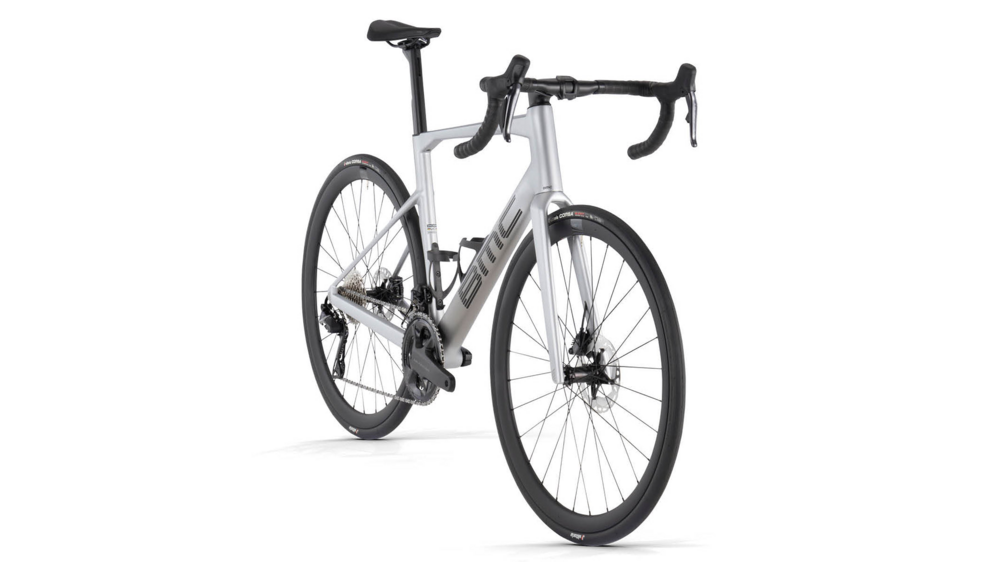

BMC Roadmachine 01 FOUR

BMC Roadmachine 01 FOUR
  • Color: Pearl River/Black
$7,999.00
Color: Pearl River/Black
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

We believe the Roadmachine 01 is your perfect bike. Speed. Comfort. Endurance. Versatility. Capabilities that put a new spin on endurance bikes. All characteristics that are complimented by Stealth Cable Routing, built-in downtube storage and integrated rear light. Finally, our ICS2 stem and carbon handlebars complement a build that includes Shimano’s Ultegra Di2 groupset and CRD-321 Carbon Wheelset with 30 mm tires.

Downtube Storage with Integrated Bottle Cages
We obsessed every detail of the downtube to optimally integrate internal storage. Inside, there’s a purpose-designed water-repellent pouch for on-ride carry. Neatly sealed under drag-reducing bottle cages.

ICS2 Stem
The ICS2 stem is designed for complete stack and reach adjustability, allowing you to create the perfect position for your perfect ride. Bringing an incredibly low weight, high stiffness, stealth cable routing and further integration.

Integrated Rear Light
As you encounter traffic, tunnels and changing conditions, you need an ultra-compact, integrated rear light that’s USB chargeable and easily attached/detached from the seatpost.

TCC Endurance
The Roadmachine takes our TCC Endurance vision further with big wheel capabilities, a dropped BB, adapted head tube angle, increased stack, and one of the industry’s smallest rear centers for a responsive ride.

Sizes:
Size475154565861
Reach (mm)370 379383388393398
Stack (mm)525 550570595620645
Bar Drop (mm)127 127127127127127
Bar Reach (mm)67 6767676767
Bar Width (mm)400 420420420420420
BB Drop (mm)75 7575757575
Crank Length (mm)170 170172.5172.5175175
Fork Length (mm)379 379379379379379
Fork Rake (mm)50 5045454545
Front Center (mm)579 596594607620633
Head Tube (mm)112 138154181207233
Head Tube Angle71.4 71.472.272.272.272.2
Rear Center (mm)415 415415415415415
Seat Angle74.2 74.274.274.274.274.2
Seat Tube (mm)414 461488508529550
Seatpost Length (mm)330 380380380380430
Seatpost Offset (mm)15 1515151515
Standover Height (mm)726 762786807828849
Stem Angle-12.5 -12.5-12.5-12.5-12.5-12.5
Stem Length (mm)90 100100110110120
Top Tube (mm)520 537546559571581
Trail (mm)63 6363636363
Wheelbase (mm)982 1000997101010231036
Sizes:
SizeRider Height (cm)Rider Height (in)
47< 160 < 5'2"
51158 - 174 5'2" - 5'8"
54172 - 180 5'7" - 5'11"
56178 - 186 5'10" - 6'1"
58184 - 192 6'0" - 6'3"
61> 190 > 6'3"

Specs

Pedals Sold Separately
Fork Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | Flat Steerer Fork | Stealth Dropout Design | Internal Cable Routing | Flat Mount Disc | 12x100mm Thru-Axle
Hubs CRD-321
Rims CRD-321 Carbon - Tubeless Ready - 35mm
Stem BMC ICS2 - Integrated Cockpit System Technology
Chain SHIMANO CN-M8100 12spd
Frame Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Downtube Storage, Bottle Cage Design and Rear Light | Stealth Dropout Design | PF86 Bottom Bracket | 12x142mm Thru-Axle
Tires Vittoria Corsa N.EXT G2.0, TLR (Tubeless Ready) - 30mm
Brakes SHIMANO Ultegra BR-R8170
Saddle Fizik Argo Tempo R5 (150mm)
Wheels CRD-321 Carbon - Tubeless Ready - 35mm
Crankset SHIMANO Ultegra FC-R8100 12spd 50-34T
Seatpost Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Shifters SHIMANO Ultegra Di2 ST-R8170 12spd
Handlebars Easton EC70 SL Carbon or Easton EC90 SLX Carbon
Brake Levers SHIMANO Ultegra BR-R8170
Rear Derailleur SHIMANO Ultegra Di2 RD-R8150 12spd
Front Derailleur SHIMANO Ultegra Di2 FD-R8150
Cassette/Freewheel SHIMANO Ultegra CS-R8101 12spd 11-34T
Accessories & Extras Integrated Rear Light 20| Roadmachine Bottle Cages | Storage Pouch

* Subject to change without notice.

Videos

Meet the 2023 Fuel EX

Part Numbers

Option UPC MPN Store SKU
Pearl River/Black / 58cm / 700c 7630906507971 30005228
Pearl River/Black / 61cm / 700c 7630906508060 30005229
Pearl River/Black / 47cm / 700c 7630906508015 30005224
Pearl River/Black / 51cm / 700c 7630906508008 30005225
Pearl River/Black / 54cm / 700c 7630906507995 30005226 210000010557
Pearl River/Black / 56cm / 700c 7630906507988 30005227
